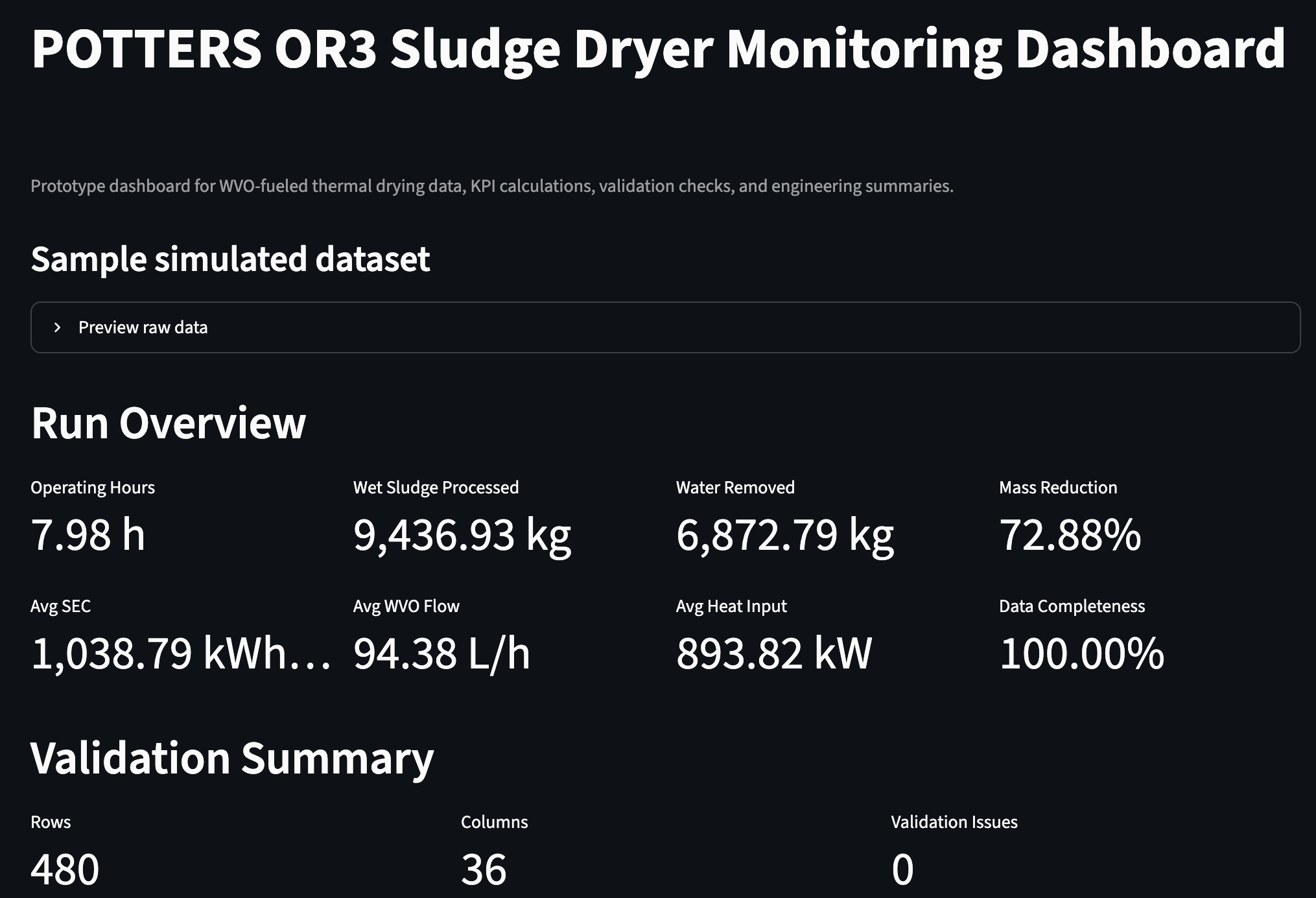

Process KPI calculations and data validation
Checks process values and turns telemetry into usable engineering metrics for dashboard review.
Research Internship · Thermal Systems · 2026
POTTERS — Smart Monitoring for a Modular Sludge Dryer
A simulation-backed engineering prototype for monitoring a proposed portable thermal sludge-drying system. Built to support future plant instrumentation, performance analysis, alarm logic, and operator decision-making.
Problem framing
Engineering Challenge
The POTTERS physical system is conceptual and proposed, so the software work focused on preparing the future system for disciplined data acquisition, KPI tracking, abnormal-condition detection, and decision support before field hardware is available. The prototype treats simulated and sample data as an engineering proving ground: telemetry can be validated, drying-zone behavior can be compared, and future sensor/control requirements can be tested against realistic operating scenarios.
- Data readiness Validate incoming process signals before they drive decisions.
- Performance tracking Calculate KPIs tied to drying effectiveness and thermal behavior.
- Abnormal conditions Flag patterns that may indicate sensor, flow, or process issues.
- Operator support Convert findings into clear engineering recommendations.
Prototype scope
What I Built

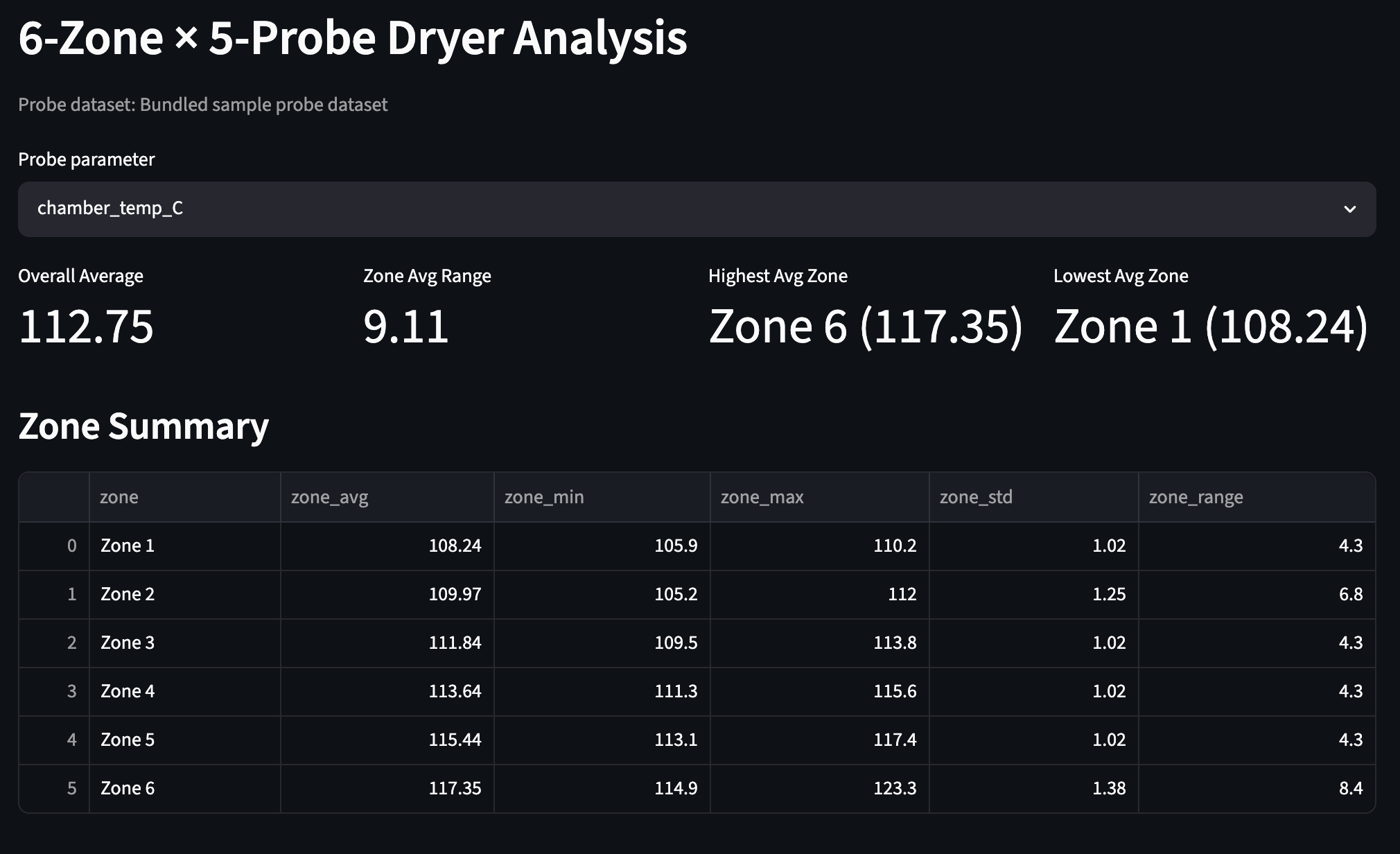

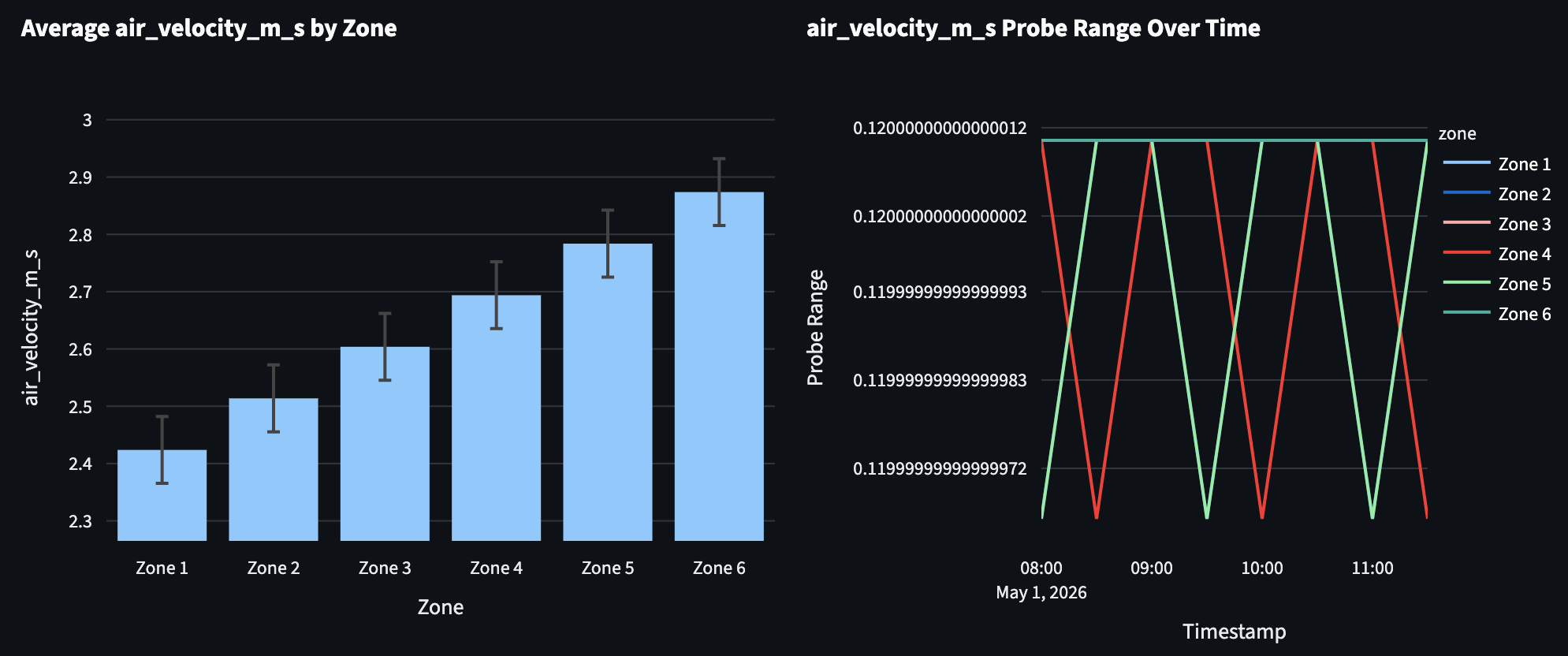

6-zone × 5-probe dryer analysis
Compares spatial behavior across dryer zones and probe locations to surface uneven performance.

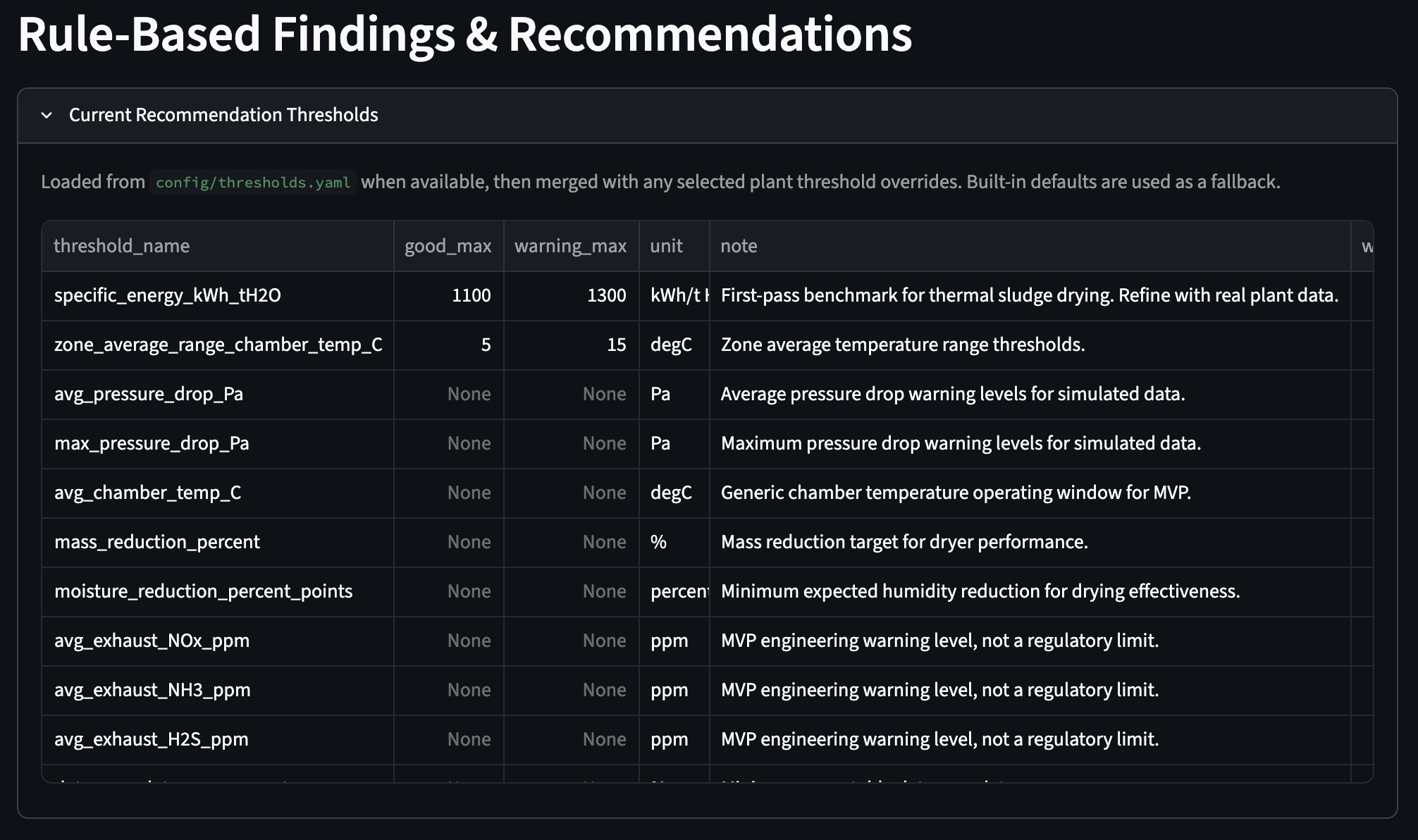

Rule-based findings and engineering recommendations
Translates modeled conditions into practical findings for instrumentation and control planning.
Synthetic/hybrid data workflow for testable dashboard development
Uses controlled sample scenarios so monitoring logic can be developed before live plant data exists.
Visual walkthrough
Project Gallery
Click any image to open the full-size asset in a new tab.
